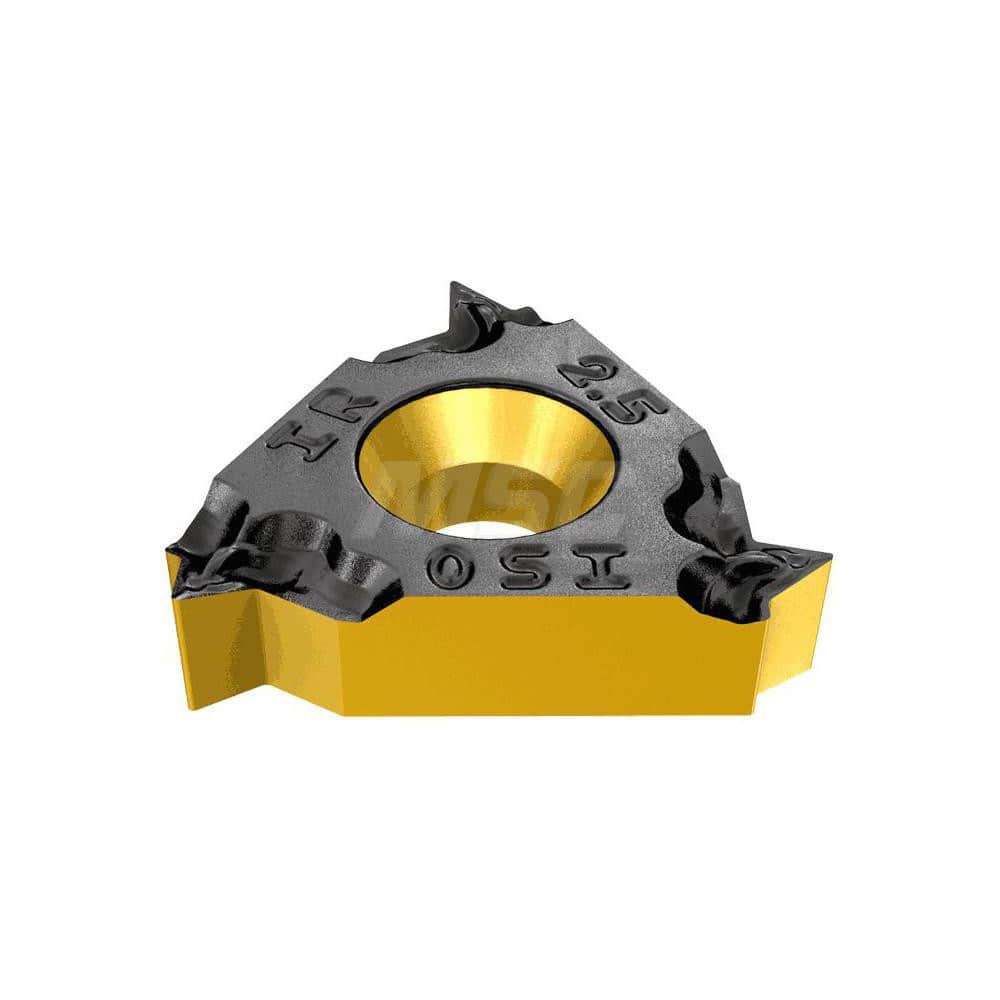

Laydown Threading Inserts; Insert Style: 16IR; Insert Size Code: 16; Insert Material: Solid Carbide; Manufacturer Grade: IC08; Threads Per Inch: 48-8; Thread Type: Internal; Thread Standard: Metric; Insert Hand: Right Hand; Included Angle: 60; Chipbreaker
Item #: 16179848
Brand: Iscar
Model #: 5902482
Product Specifications
| Insert Style | 16IR |
| Insert Size Code | 16 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC08 |
| Thread Type | Internal |
| Thread Standard | Metric |
| Insert Hand | Right Hand |
| Included Angle | 60 |
| Chipbreaker | Z |
| Series | IR |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Teeth Per Inch | 48.00 to 8.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1430 |
| Coating/Finish | Uncoated |
