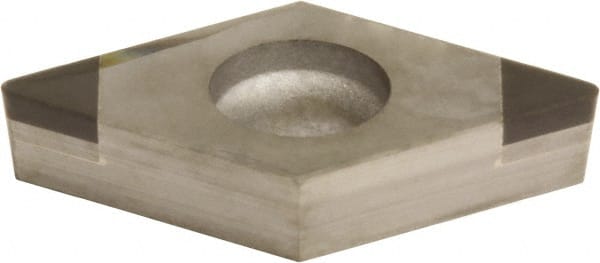

Sumitomo - 2NU-DCGA21.51 Grade BN700 PCBN Turning Insert
Item #: 53979191
Brand: Sumitomo
Model #: U100033
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | 2NU-DCGA |
| Insert Size | 21.51 |
| Material | PCBN |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | BN700 |
| Coating | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Relief Angle | 7 |
| Included Angle | 55 |
| Maximum Depth of Cut (Decimal Inch) | 0.0150 |
| Insert Holding Method | Screw |
| Shape | Diamond |
