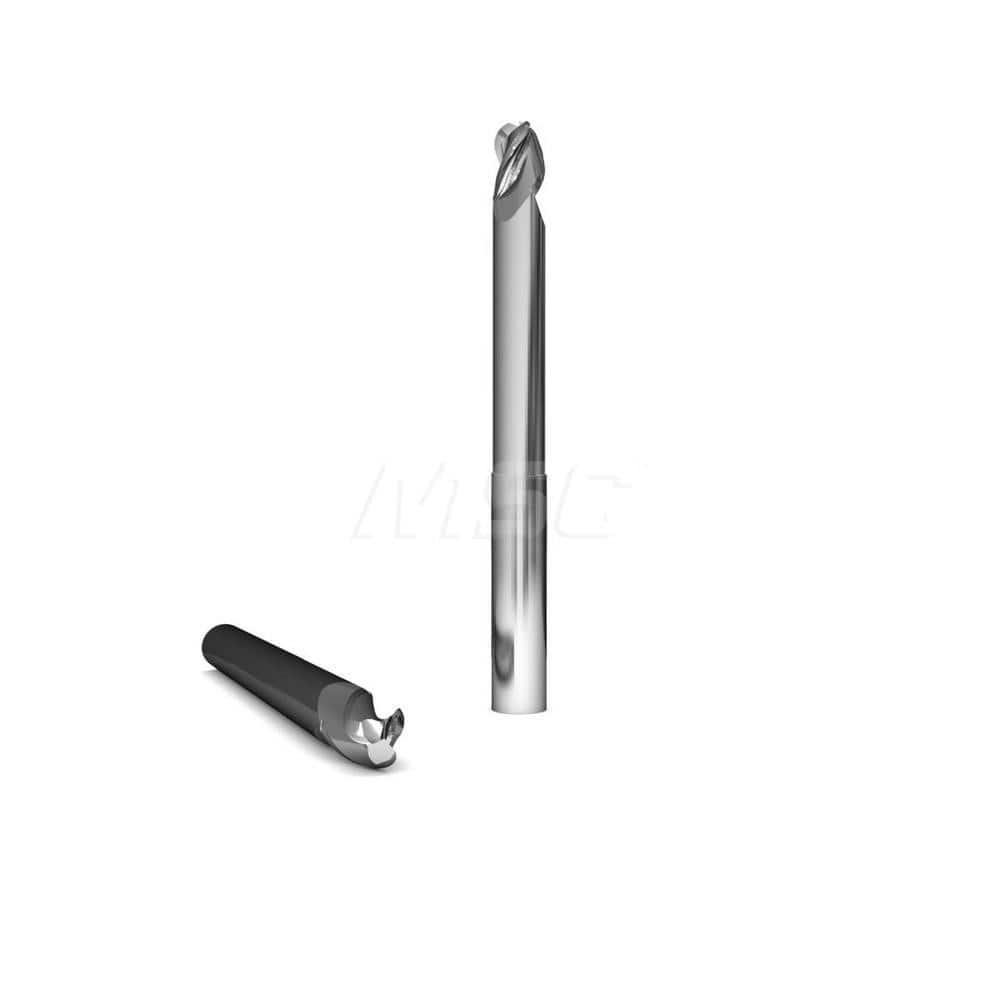

Ball End Mill: 0.3125″ Dia, 3 Flute, Solid Carbide 2-1/2″ OAL, 5/16″ Shank Dia, 37 ° Helix, ZrN Coated, Single End, Series 2047
Item #: 14550024
Brand: GWS
Model #: 315802
Product Specifications
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Length of Cut (Inch) | 7/16 |
| End Mill Material | Solid Carbide |
| End Type | Ball |
| Extended Reach | Yes |
| Helix Angle | 37 |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 5/16 |
| Neck Length (Inch) | 1-1/8 |
| Reach Length (Inch) | 1-1/8 |
| Overall Length (Inch) | 2-1/2 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 2047 |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 3 |
| Coating/Finish | ZrN |
| Manufacturers Catalog Number | 350N312072BNC5 |
