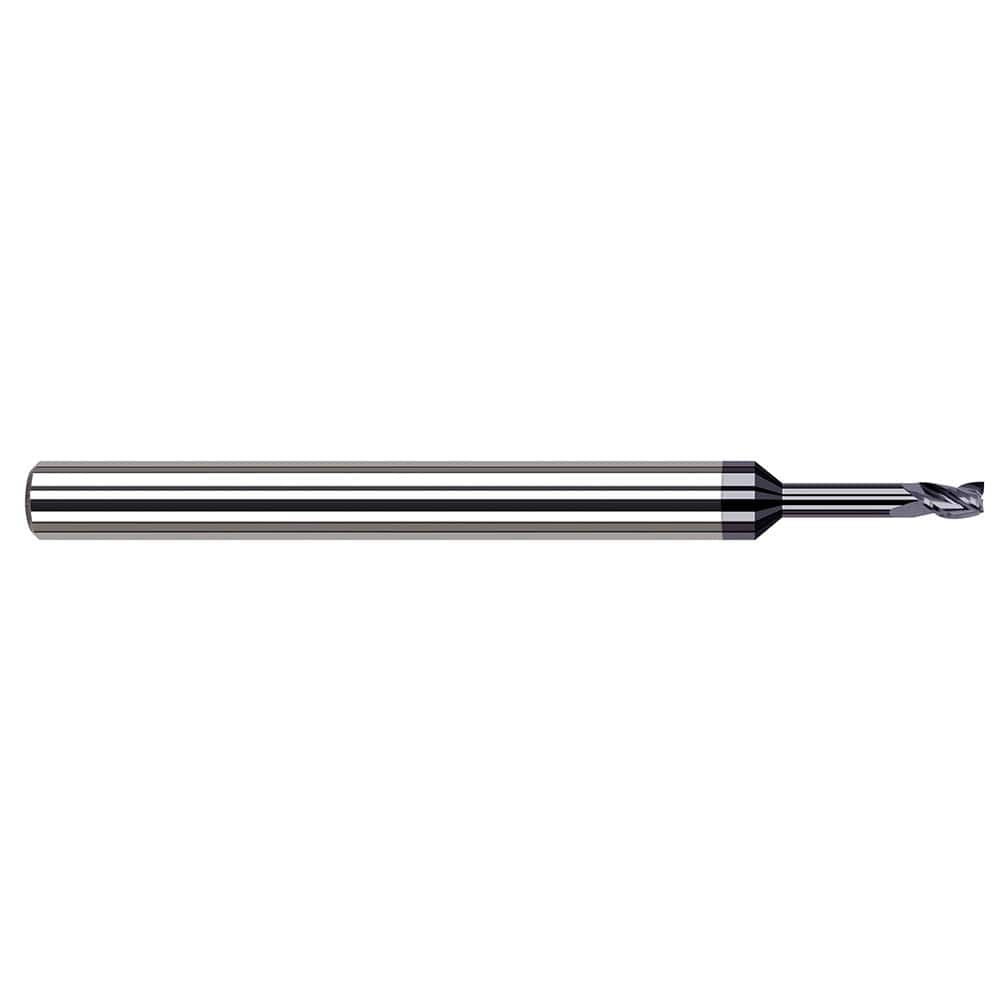

Square End Mill: 0.02'' Dia, 0.03'' LOC, 1/8'' Shank Dia, 2-1/2'' OAL, 3 Flutes, Solid Carbide Single End, AlTiN Nano Finish, 34 ° Variable Helix, Centercutting, RH Cut, RH Flute
Item #: 14517999
Brand: Harvey Tool
Model #: 791320-C6
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0200 |
| Mill Diameter (mm) | 0.50 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/8 |
| Finish/Coating | AlTiN Nano |
| Overall Length (Inch) | 2-1/2 |
| Helix Angle | 34 |
| Variable Helix | Yes |
| Extended Reach | Yes |
| Length Of Cut Range (Decimal Inch) | 0.0000 - 0.1000 |
| Length of Cut (Decimal Inch) | 0.0300 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Reach Length (Decimal Inch) | 0.1000 |
