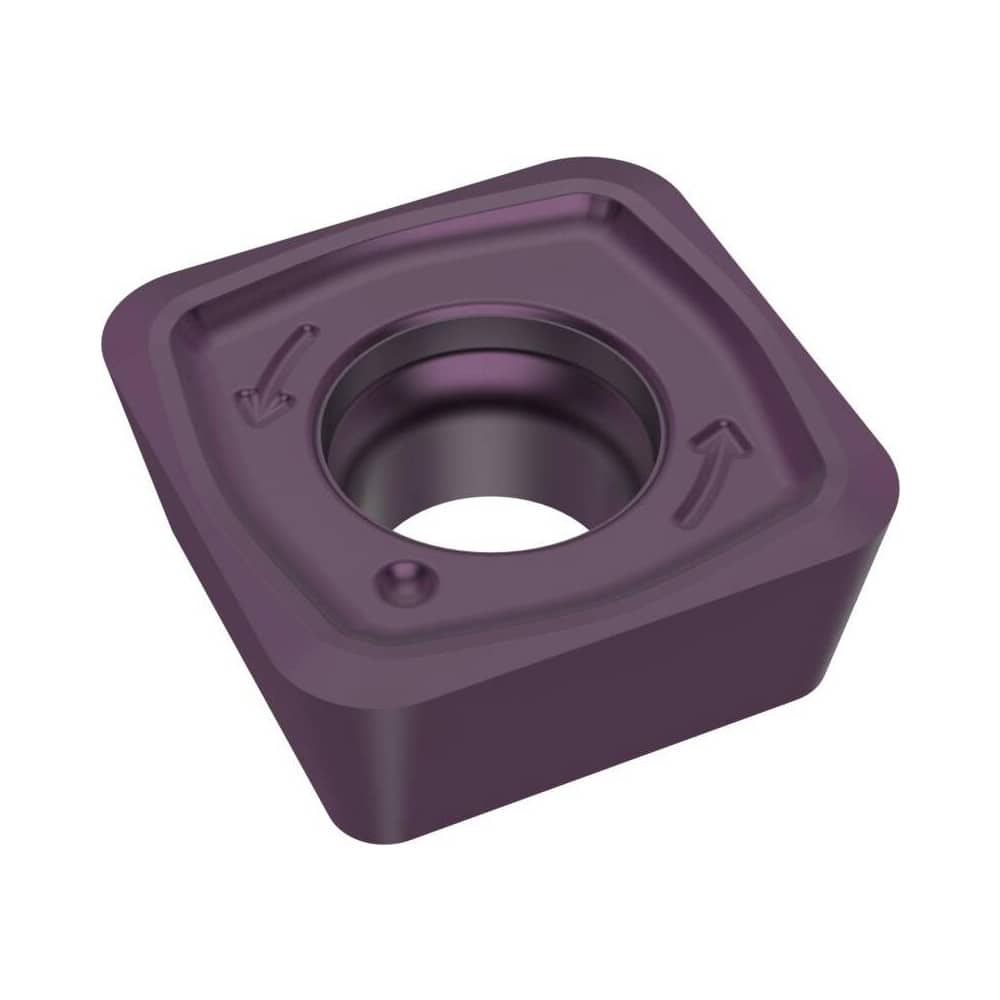

Milling Insert: SPKT10T317TN-MD12, MK2050, Solid Carbide N/A Finish,
Item #: 14088256
Brand: Seco
Model #: 10098035
Product Specifications
| Insert Style | SPKT |
| Insert Size Code | 10T317 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | MK2050 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Corner Radius (Decimal Inch) | 0.0669 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Neutral |
| Relief Angle | 11.00 |
| Series | SPKT10 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3937 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Secondary Workpiece Material | Hard Material; Steel |
| Secondary Workpiece Material Code | P; H |
| Ansi Code | SPKT10T317TN-MD12 |
| Iso Code | SPKT10T317TN-MD12 |
| Chip Breaker | MD12 |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
