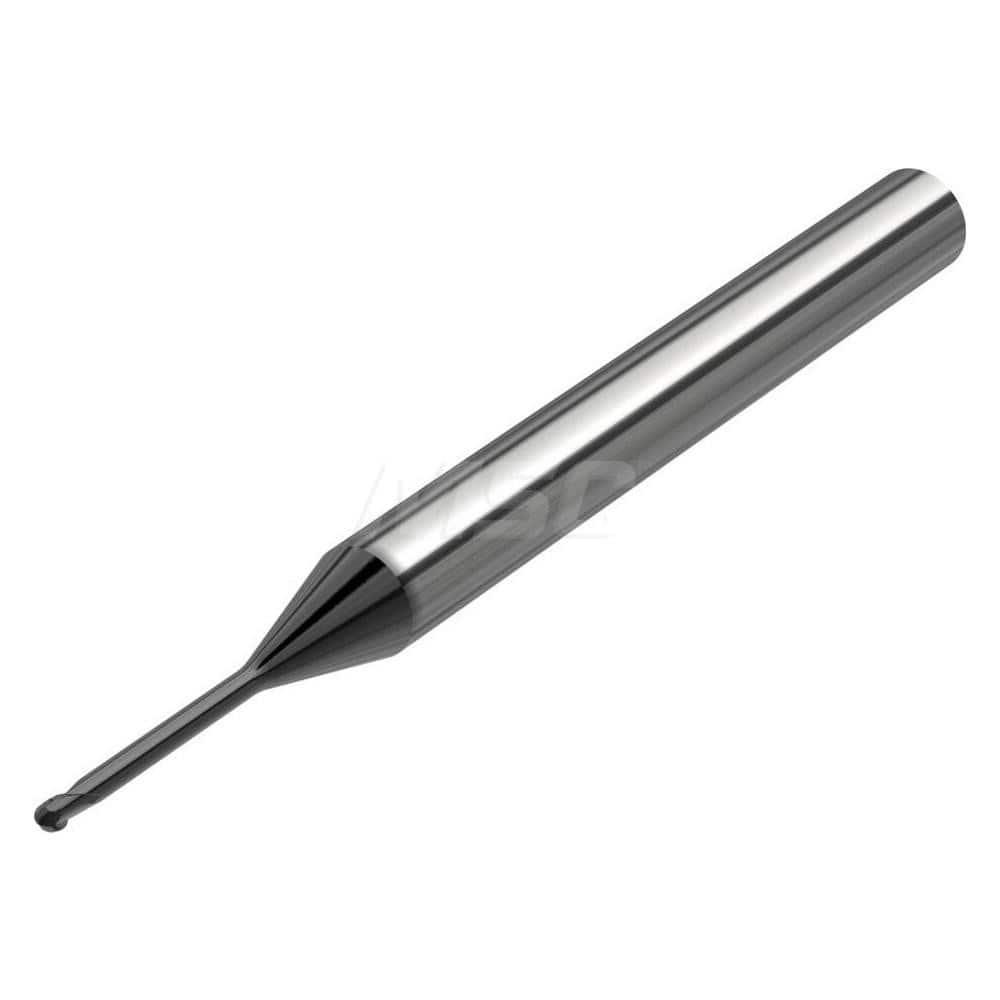

Ball End Mill: 0.1181″ Dia, 0.12″ LOC, 2 Flute, Solid Carbide 50 mm OAL, 35 ° Helix, M9 Coated, Single End, Series SMB410
Item #: 14087514
Brand: Seco
Model #: 10109140
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1181 |
| Mill Diameter (mm) | 3.00 |
| Length of Cut (mm) | 3.00 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Single |
| Extended Reach | Yes |
| Helix Angle | 35 |
| Undercutting | No |
| Variable Index | No |
| Variable Helix | No |
| Length Type | Long |
| Helix Style | High |
| Material Removal Type | Finishing |
| Neck Diameter (Decimal Inch) | 2.8500 |
| Nose Radius (Decimal Inch) | 1.5000 |
| Neck Length (Inch) | 13 |
| Neck Length (Decimal Inch) | 13.0000 |
| Reach Length (mm) | 16.00 |
| Overall Length (mm) | 50.00 |
| Mill Diameter Tolerance | 0.01 to 0.01 mm |
| Maximum Helix Angle | 35.00 |
| Minimum Helix Angle | 35.00 |
| Primary Workpiece Material | Thermosetting Polymers; Thermoplastic Polymers |
| Primary Workpiece Material Code | TS1; TP1 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | SMB410 |
| Flute Type | Spiral |
| TIR Maximum (mm) | 0.01 |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | M9 |
| Pitch | Normal |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1200 |
| Manufacturers Catalog Number | SMB414030G4B.0Z2 |
 | |
| MSC Part # | 14087514 |
| Mfr Part # | 10109140 |
| Country of OriginCountry of Origin is subject to change | China |
