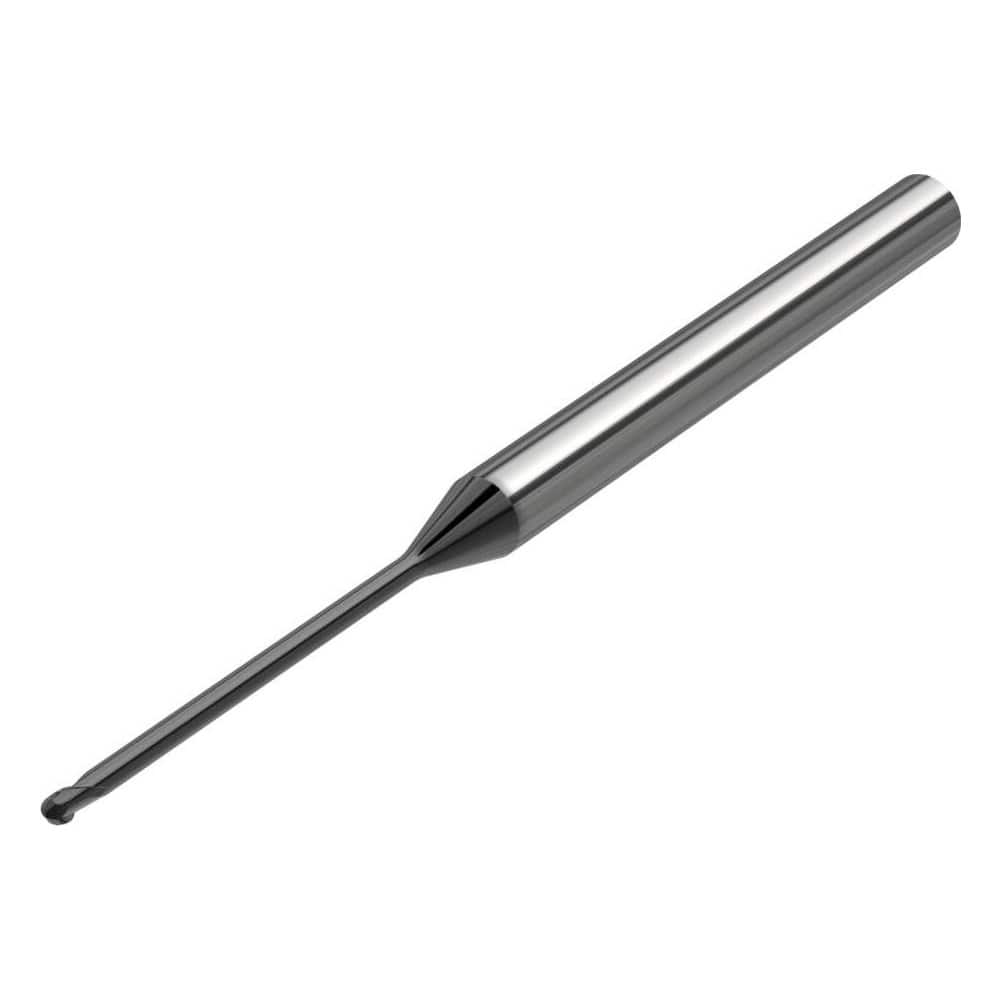

Ball End Mill: 0.0984″ Dia, 0.1″ LOC, 2 Flute, Solid Carbide 50 mm OAL, 15 ° Helix, M9 Coated, Single End, Series SMB410
Item #: 14087225
Brand: Seco
Model #: 10109136
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0984 |
| Mill Diameter (mm) | 2.50 |
| Length of Cut (mm) | 2.50 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Single |
| Extended Reach | Yes |
| Helix Angle | 15 |
| Undercutting | No |
| Variable Index | No |
| Variable Helix | No |
| Length Type | Extra Long |
| Helix Style | Medium |
| Material Removal Type | Finishing |
| Neck Diameter (Decimal Inch) | 2.4000 |
| Nose Radius (Decimal Inch) | 1.2500 |
| Neck Length (Decimal Inch) | 17.5000 |
| Reach Length (mm) | 20.00 |
| Overall Length (mm) | 50.00 |
| Mill Diameter Tolerance | 0.01 to 0.01 mm |
| Maximum Helix Angle | 15.00 |
| Minimum Helix Angle | 15.00 |
| Primary Workpiece Material | Thermosetting Polymers; Thermoplastic Polymers |
| Primary Workpiece Material Code | TS1; TP1 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | SMB410 |
| Flute Type | Spiral |
| TIR Maximum (mm) | 0.01 |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | M9 |
| Pitch | Normal |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1000 |
| Manufacturers Catalog Number | SMB413025G5B.0Z2 |
 | |
| MSC Part # | 14087225 |
| Mfr Part # | 10109136 |
| Country of OriginCountry of Origin is subject to change | China |
