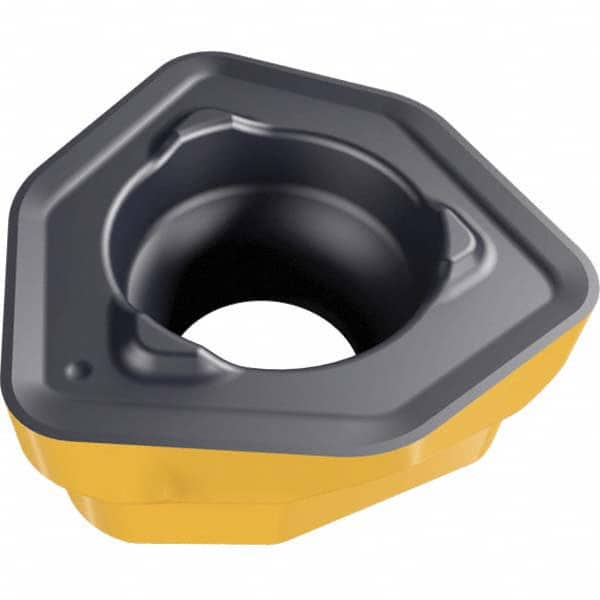

FFT3 WXMT030206T IC830 Carbide Milling Insert TiAlN/AlTiN/TiN Finish, 9.05mm Thick
Item #: 12560397
Brand: Iscar
Model #: 3343669
Product Specifications
| Insert Style | WXMT |
| Insert Size Code | 030206 |
| Insert Size | 030206 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC830 |
| Inscribed Circle (Decimal Inch) | 0.1653 |
| Inscribed Circle (mm) | 4.20 |
| Thickness Range (Decimal Inch) | 0.3500 to 0.5000 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Corner Radius (mm) | 0.60 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Series | MICRO3FEED |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.0236 |
| Maximum Depth of Cut (mm) | 0.60 |
| Number Of Cutting Edges | 3 |
| Insert Shape | Trigon |
| Rake | Positive |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material Code | S |
| Iso Code | FFT3 WXMT 030206T |
| Standards | ISO 13399 |
| Cutter Series Compatibility | WXMT |
| Chip Breaker | T |
| Thickness (mm) | 9.05 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.3562 |
