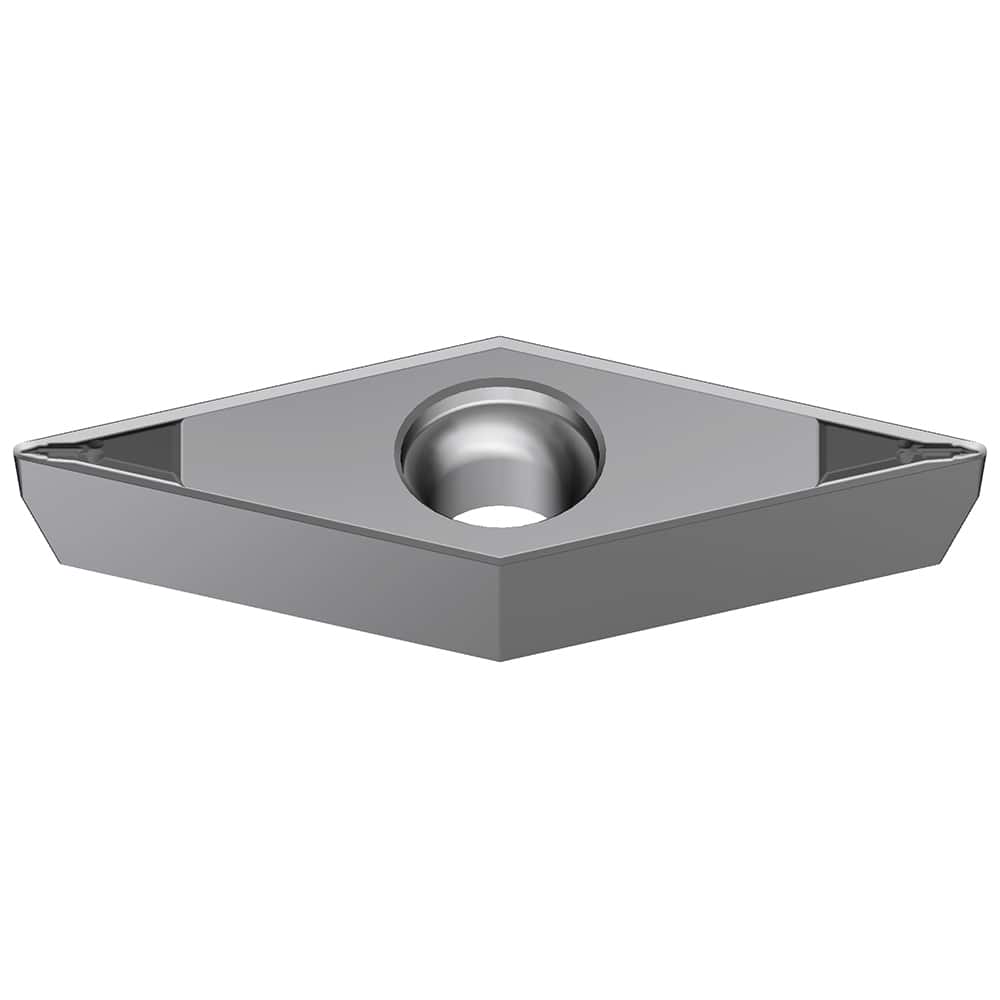

VCMT630.5ELB AC8025P Carbide Turning Insert Absotech Finish, 8.3mm Long, 4.76mm Inscribed Circle, 0.2mm Corner Radius, 2.38mm Thick, 35° Included Angle, Series AC8000P
Item #: 12070157
Brand: Sumitomo
Model #: 19P7CPS
Product Specifications
| Insert Style | VCMT |
| Insert Shape Code | V |
| Insert Size Code | 630.5 |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC8025P |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.30 |
| Inscribed Circle (mm) | 4.76 |
| Insert Holding Method | Screw-On |
| Insert Thickness | 2.38 |
| Corner Radius (mm) | 0.20 |
| Included Angle | 35.0 |
| Relief Angle | 7 |
| Series | AC8000P |
| Coating Process | CVD |
| Rake | Positive |
| Insert Length (mm) | 8.30 |
| Primary Workpiece Material | Steel |
| Iso Code | VCMT080202N-LB |
| Manufacturers Catalog Number | VCMT630.5ELB-AC8025P |
| Chip Breaker | ELB |
| Coating/Finish | Absotech |
