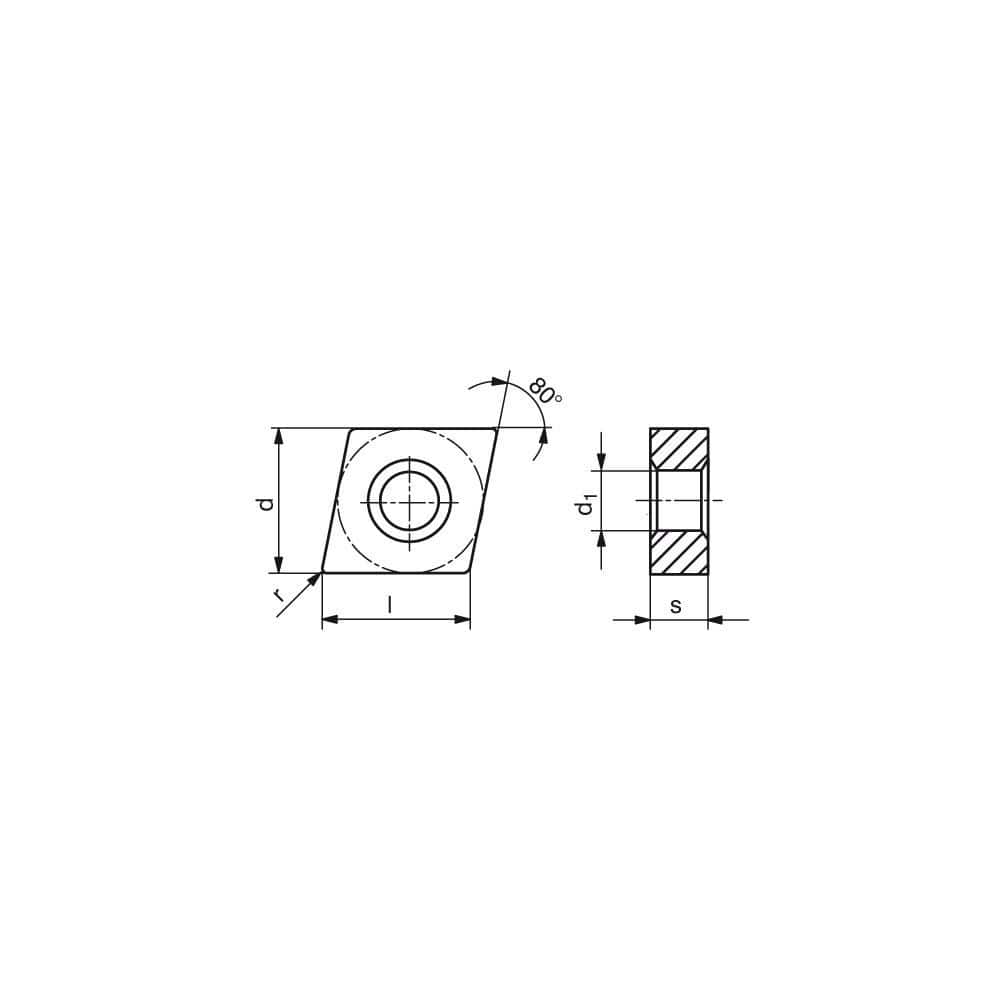

Turning Insert: CNMG433EN-M30 CTPM125, Solid Carbide TiAlTaN Finish, Neutral, 1/2″ Inscribed Circle, 0.0472″ Corner Radius, 80.0 ° N/A Diamond, Series CNMG
Item #: 11044187
Brand: Ceratizit
Model #: 75011232
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 433 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTPM125 |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Maximum Depth of Cut (Decimal Inch) | 0.5079 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | CNMG |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Secondary Workpiece Material | Super-alloys & Titanium |
| Secondary Workpiece Material Code | S |
| Ansi Code | CNMG433ENM30CTPM125 |
| Iso Code | CNMG 120412EN-M30 CTPM125 |
| Chip Breaker | M30 |
| Coating/Finish | TiAlTaN |
