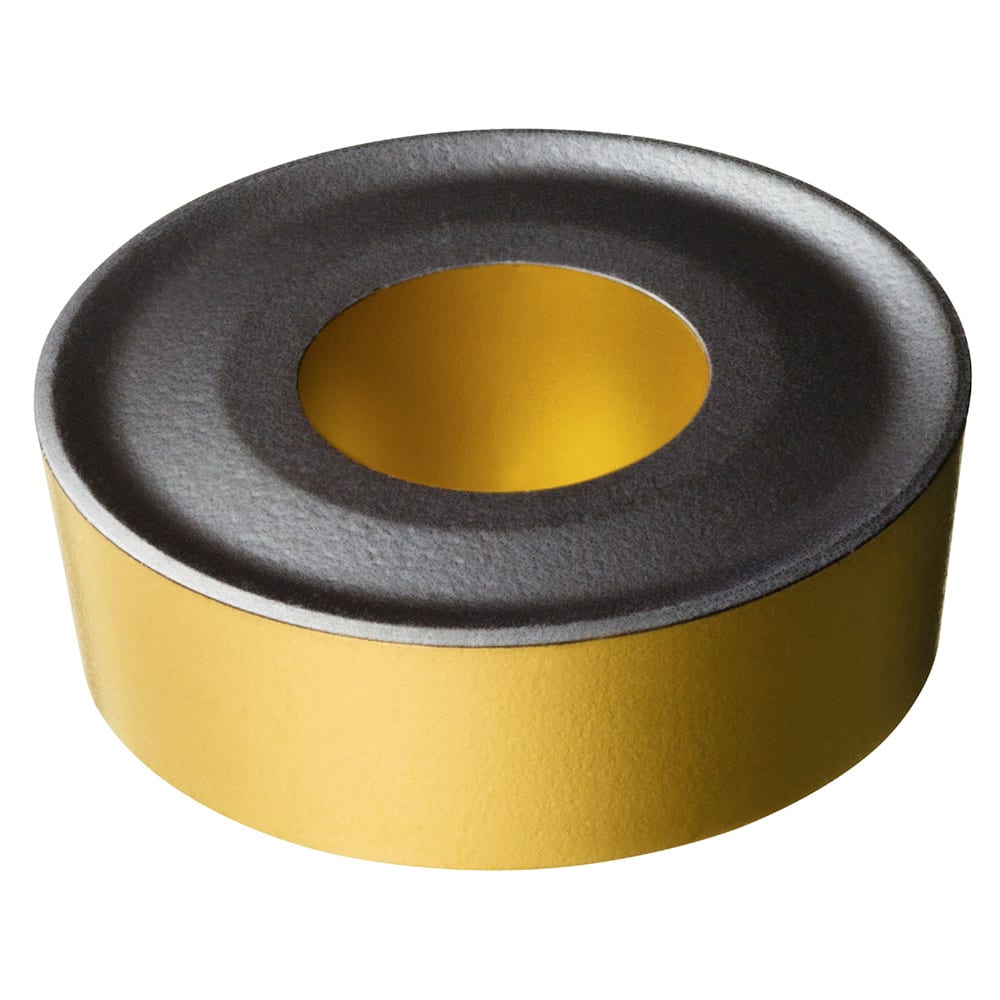

Turning Insert: RCMX 12 04 00 4425, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.2362″ Corner Radius, N/A Series RCMX
Item #: 10799054
Brand: Sandvik Coromant
Model #: 8019523
Product Specifications
| Insert Style | RCMX |
| Insert Shape Code | R |
| Insert Size Code | 1204 |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4425 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Relief Angle | 7 |
| Series | RCMX |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | K |
| Iso Code | RCMX 12 04 00 4425 |
| Manufacturers Catalog Number | RCMX 12 04 00 4425 |
| Cutting Direction | Neutral |
| Chip Breaker | 00 |
| Coating/Finish | TiCN; TiN; Al2O3 |
