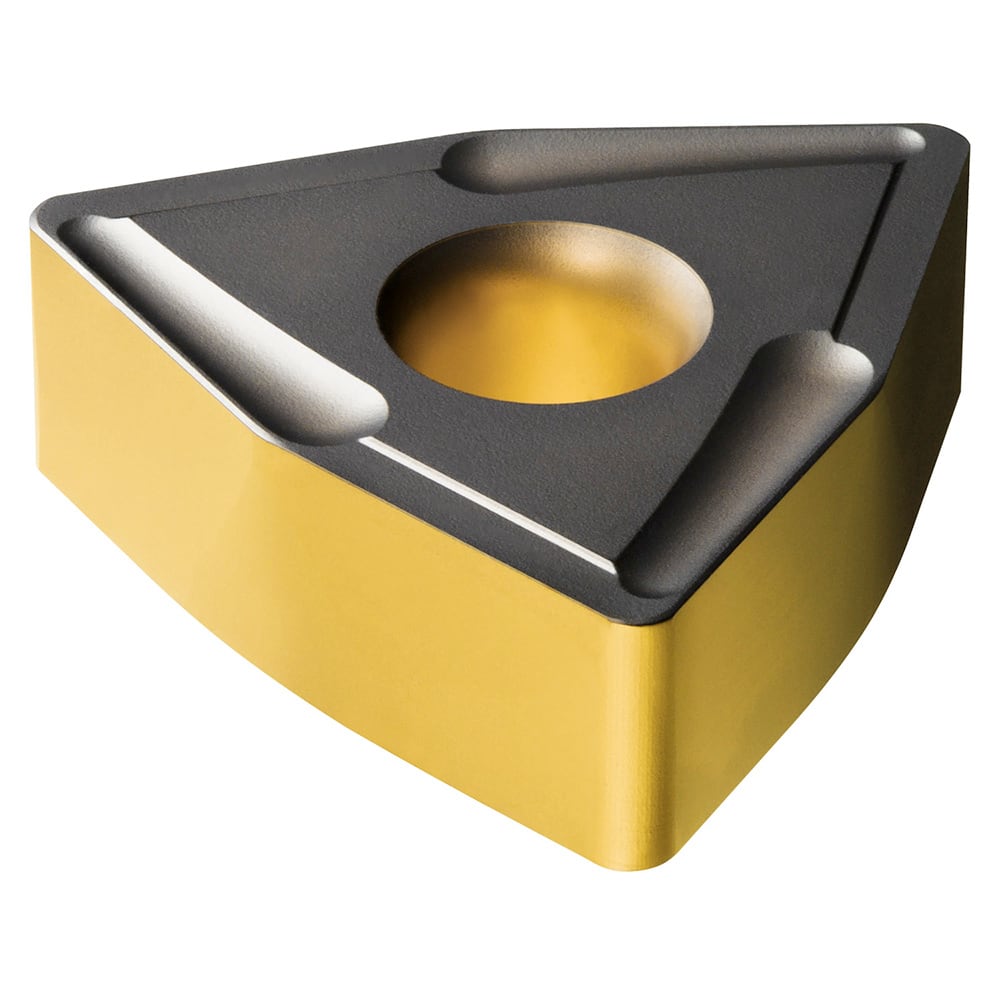

Turning Insert: WNMT 15 09 31-PM 4425, Solid Carbide TiCN, Al2O3 & TiN Finish, Left Hand, 0.4331″ Corner Radius, N/A Series T-Max P
Item #: 10795839
Brand: Sandvik Coromant
Model #: 8019391
Product Specifications
| Insert Style | WNMT |
| Insert Shape Code | W |
| Insert Size Code | 1509 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4425 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Inscribed Circle (Decimal Inch) | 0.8750 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Left Hand |
| Insert Thickness (Decimal Inch) | 0.3750 |
| Corner Radius (Decimal Inch) | 0.4331 |
| Relief Angle | 0 |
| Series | T-Max P |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Iso Code | WNMT 15 09 31-PM 4425 |
| Manufacturers Catalog Number | WNMT 15 09 31-PM 4425 |
| Cutting Direction | Left Hand |
| Chip Breaker | PM |
| Coating/Finish | TiCN; TiN; Al2O3 |
