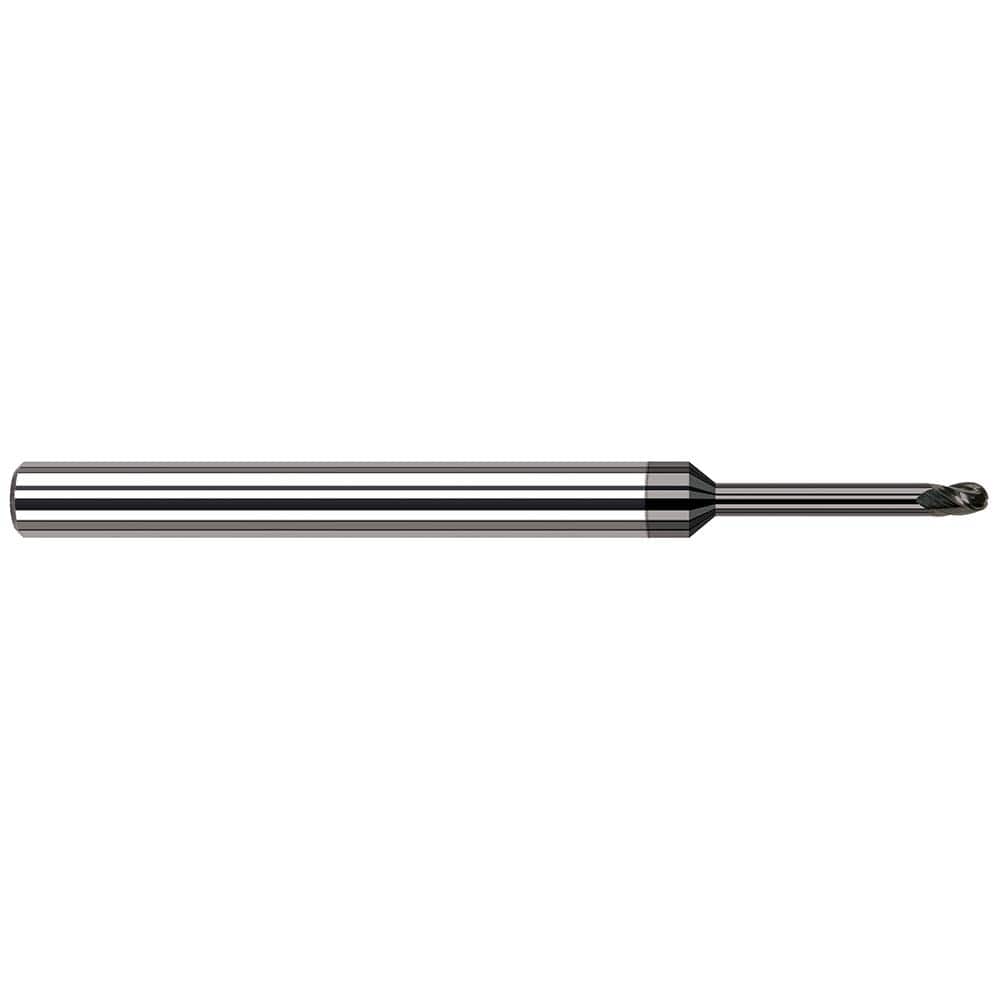

Ball End Mill: 0.047″ Dia, 0.07″ LOC, 3 Flute, Solid Carbide 2-1/2″ OAL, 1/8″ Shank Dia, 42 ° Helix, Amorphous Diamond Coated, Single End
Item #: 10354181
Brand: Harvey Tool
Model #: 54447-C4
Product Specifications
| Mill Diameter (Inch) | 3/64 |
| Mill Diameter (Decimal Inch) | 0.0470 |
| Mill Diameter (mm) | 1.20 |
| End Mill Material | Solid Carbide |
| Helix Angle | 42 |
| Length Of Cut Range (Decimal Inch) | 0.0500 to 0.1000 |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Reach Length (Inch) | 3/8 |
| Reach Length (Decimal Inch) | 0.3750 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 3 |
| Coating/Finish | Amorphous Diamond |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0700 |
