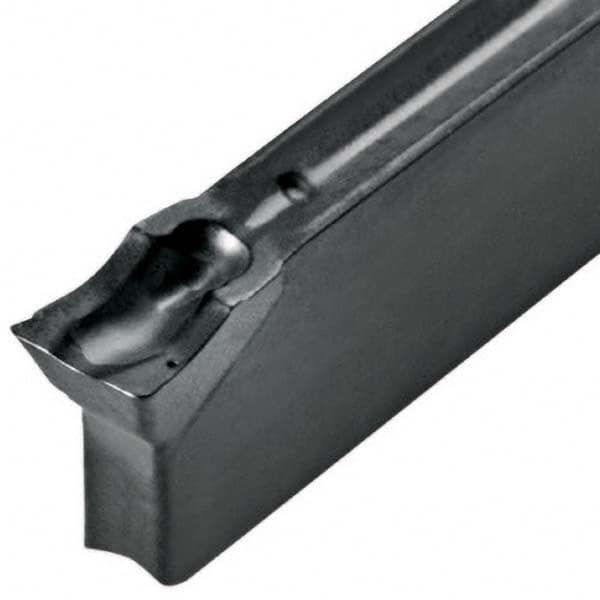

Grooving Insert: SA1717S1 AM5040, Solid Carbide AlTiN Finish, Neutral, 4 mm Cutting Width, 40 mm Max Depth
Item #: 10076362
Brand: Arno
Model #: 101890
Product Specifications
| Insert Style | SA17 |
| Insert Size | 17 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AM5040 |
| Cutting Width (mm) | 4.00 |
| Maximum Depth of Cut (mm) | 40.00 |
| Cutting Height (mm) | 7.50 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Lead Angle | 0 |
| Multi-use Tool | No |
| Coating Process | PVD |
| Overall Length (mm) | 17.00 |
| Manufacturers Catalog Number | SA17-4004N-S1 AM5040 |
| Cut Condition | Stable |
| Chip Breaker | S1 |
| Insert Seat Size | 17 |
| Coating/Finish | AlTiN |
| Number Of Cutting Edges | 1 |
