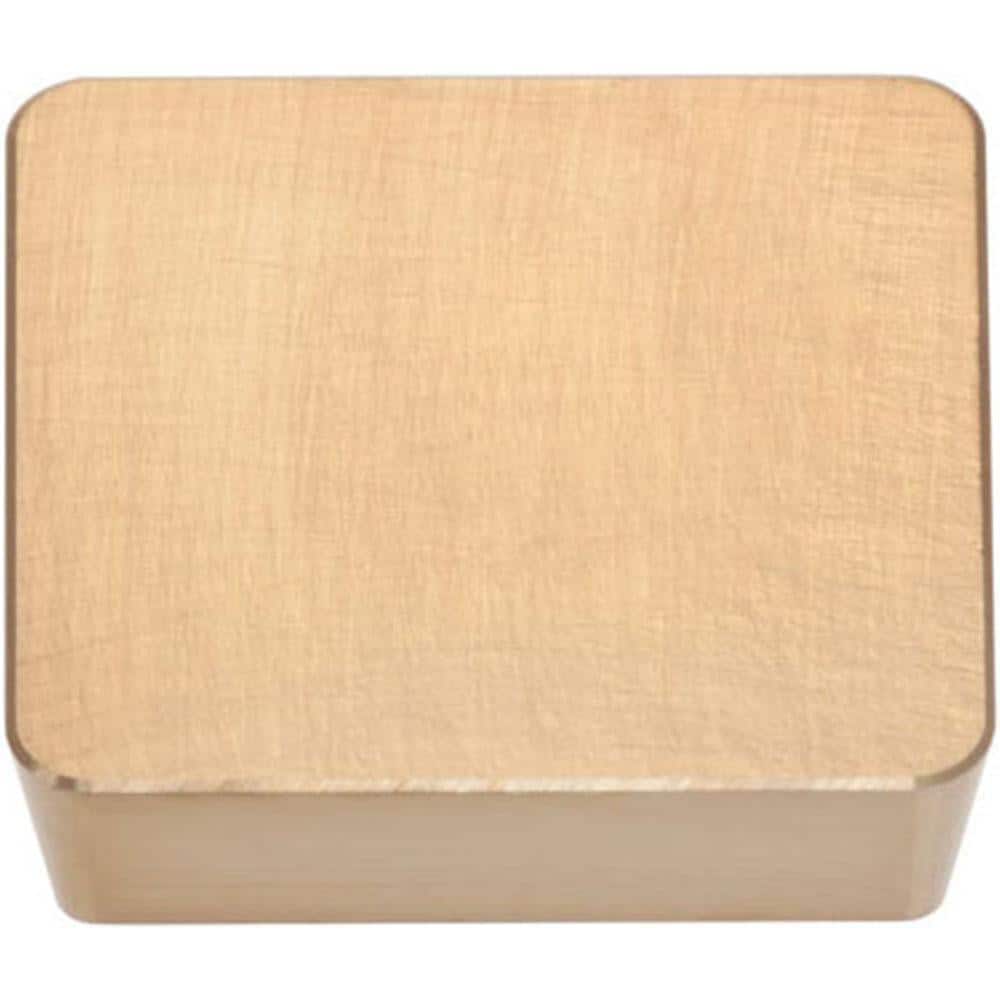

Turning Insert: SPGN321 LX11, Ceramic TiN Finish, Neutral, 0.3750″ Long, 3/8″ Inscribed Circle, 0.0160″ Corner Radius, N/A Square, Series SPGN
Item #: 09998337
Brand: Tungaloy
Model #: 6807046
Product Specifications
| Insert Style | SPGN |
| Insert Shape Code | S |
| Insert Size Code | 321 |
| Insert Shape | Square |
| Clearance Code | P |
| Tolerance Code | G |
| Insert Material | Ceramic |
| Manufacturer Grade | LX11 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Relief Angle | 11 |
| Series | SPGN |
| Coating Process | PVD |
| Rake | Positive |
| Insert Length (Inch) | 3/8 |
| Insert Length (Decimal Inch) | 0.3750 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Chip Breaker | N |
| Coating/Finish | TiN |
