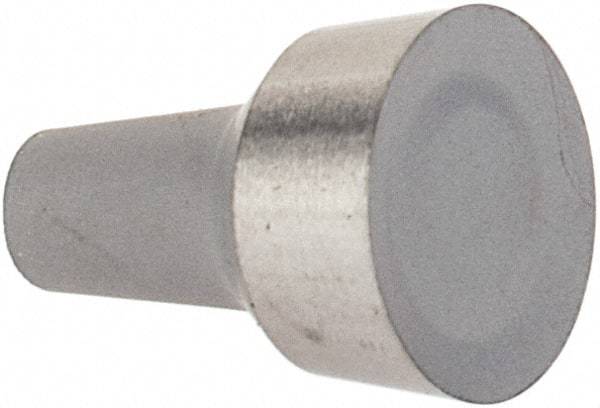

Kennametal - RCGK152 HP Grade K313 Carbide Boring Insert - Uncoated, Round, 7° Relief Angle, 3/16" Inscr Circle, 5/16" Thick
Item #: 09652603
Brand: Kennametal
Model #: 1523501
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | RCGK |
| Insert Size | 152 |
| Material Grade | C3/C4 |
| Manufacturer's Grade | K313 |
| Inscribed Circle (mm) | 4.76 |
| Inscribed Circle (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.1875 |
| Thickness (mm) | 6.38 |
| Thickness (Decimal Inch) | 0.2510 |
| Thickness (Inch) | 5/16 |
| Coating | Uncoated |
| Chipbreaker | HP |
| Length (mm) | 6.38 |
| Length (Decimal Inch) | 0.2512 |
| Insert Height (mm) | 6.38 |
| Insert Height (Decimal Inch) | 0.2512 |
| Rake | Positive |
| Relief Angle | 7 |
| Series | K-Lock |
| Insert Holding Method | Clamp |
| Shape | Round |
