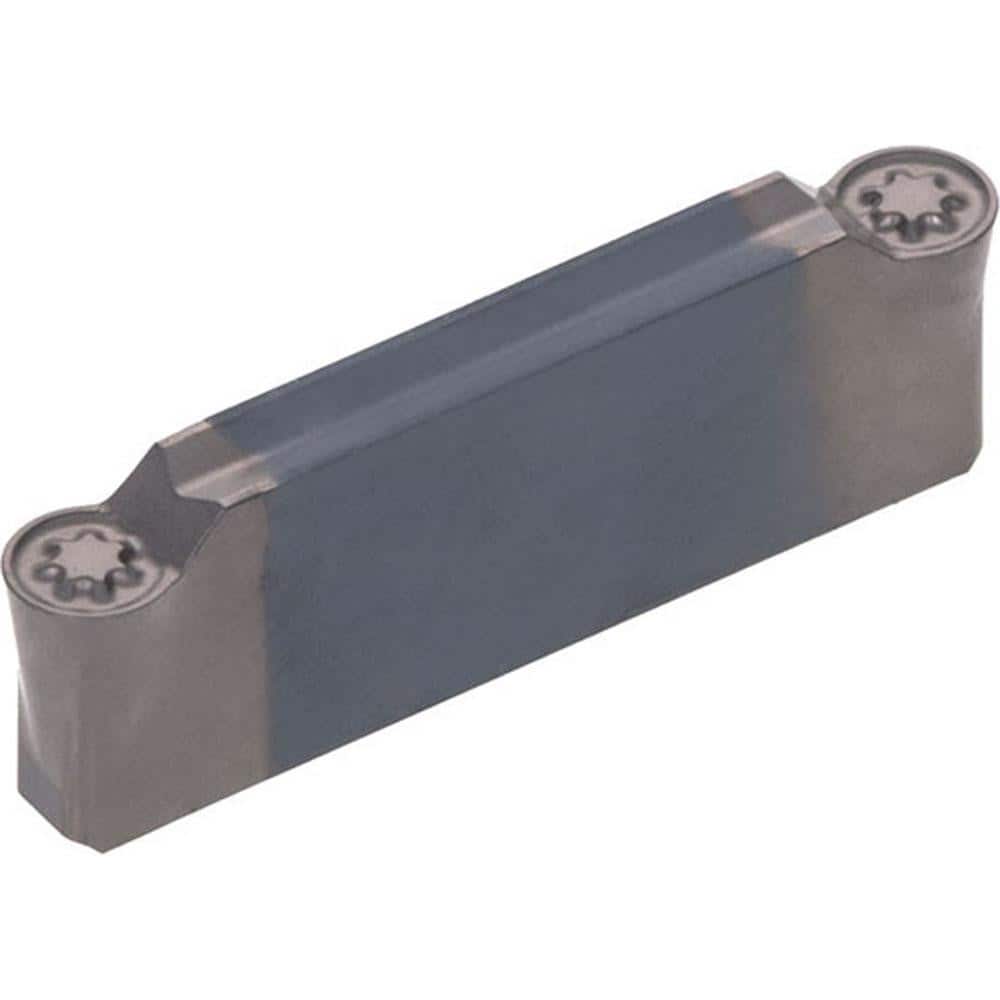

Grooving Insert: WGRGR NS9530, Cermet Uncoated, Neutral, 0.197″ Cutting Width, Series WGR
Item #: 08464554
Brand: Tungaloy
Model #: 6705509
Product Specifications
| Insert Style | WGR |
| Insert Size Code | 5 |
| Insert Material | Cermet |
| Manufacturer Grade | NS9530 |
| Cutting Width (Decimal Inch) | 0.1970 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Corner Radius (Decimal Inch) | 0.0984 |
| Lead Angle | 90 |
| Rake | Positive |
| Multi-use Tool | No |
| Cutting Tool Application | Profiling |
| Series | WGR |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Chip Breaker | GR |
| Coating/Finish | Uncoated |
