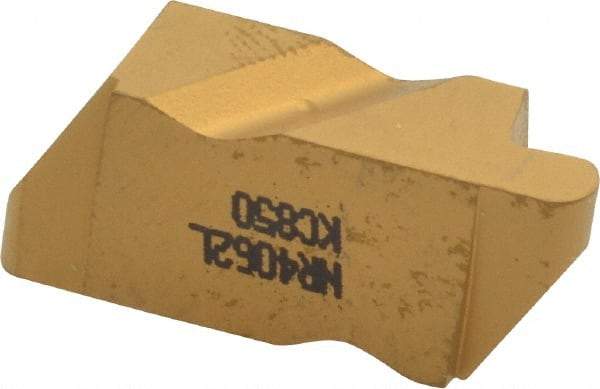

Kennametal - 4062NR Grade KC850, 3.18mm Cutting Width Carbide Grooving Insert - 3.81mm Max Depth of Cut, Left Hand, 1.59mm Corner Radius, TiC/TiCN/TiN Finish
Item #: 08444549
Brand: Kennametal
Model #: 1113839
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NR |
| Insert Size | 4062 |
| Material | Carbide |
| Cutting Width (mm) | 3.18 |
| Cutting Width (Decimal Inch) | 0.1252 |
| Maximum Depth of Cut (mm) | 3.81 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | KC850 |
| Coating | TiC/TiCN/TiN |
| Insert Hand | Left Hand |
| Insert Seat Size | 4 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 1.59 |
| Corner Radius (Decimal Inch) | 0.0626 |
| Coating Process | CVD |
| Series | Top Notch |
| Rake | Neutral |
