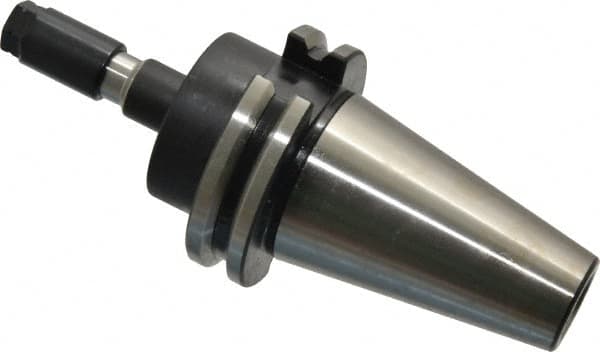

Parlec - 1/32" to 1/4" Capacity, 3.38" Projection, CAT40 Taper Shank, DA300 Collet Chuck - 6.067" OAL
Item #: 08144800
Brand: Parlec
Model #: C40-30DC3
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Double Angle |
| Collet Series | DA300 |
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Projection (Decimal Inch) | 3.3800 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Inch) | 1/32 |
| Minimum Collet Capacity (Decimal Inch) | 0.0313 |
| Minimum Collet Capacity (mm) | 0.79 |
| Maximum Collet Capacity (mm) | 6.35 |
| Maximum Collet Capacity (Inch) | 1/4 |
| Maximum Collet Capacity (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 6.0670 |
| Nose Diameter (Decimal Inch) | 0.6200 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0004 |
| Coolant Type | Through-Spindle |
