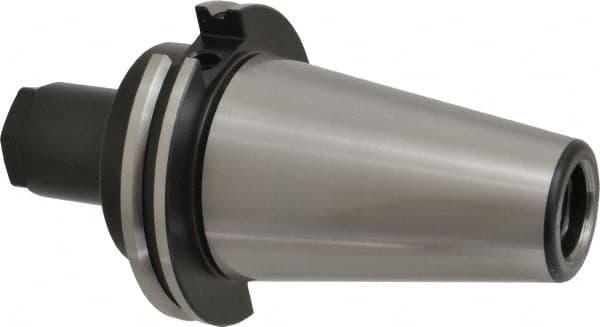

Parlec - 1/32" to 3/4" Capacity, 3.38" Projection, CAT50 Taper Shank, DA180 Collet Chuck - 7.38" OAL
Item #: 08144669
Brand: Parlec
Model #: C50-18DC3
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Double Angle |
| Collet Series | DA180 |
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Projection (Decimal Inch) | 3.3800 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Inch) | 1/32 |
| Minimum Collet Capacity (Decimal Inch) | 0.0310 |
| Minimum Collet Capacity (mm) | 0.79 |
| Maximum Collet Capacity (mm) | 19.05 |
| Maximum Collet Capacity (Inch) | 3/4 |
| Maximum Collet Capacity (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 7.3800 |
| Nose Diameter (Decimal Inch) | 1.4400 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0004 |
| Coolant Type | Through-Spindle |
