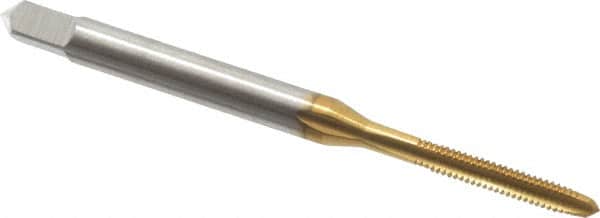

Hertel - M2.2x0.45 Metric Coarse 3 Flute TiN Finish High Speed Steel Straight Flute Standard Hand Tap - Plug, Right Hand Thread, 1-3/4" OAL, 7/16" Thread Length, D3 Limit, Oversize
Item #: 07684178
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (mm) | M2.2x0.45 |
| Thread Limit | D3 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Inch) | 1-3/4 |
| Oversize | No |
| Thread Length (Inch) | 7/16 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Length (Inch) | 3/16 |
| Square Size (Decimal Inch) | 0.1100 |
