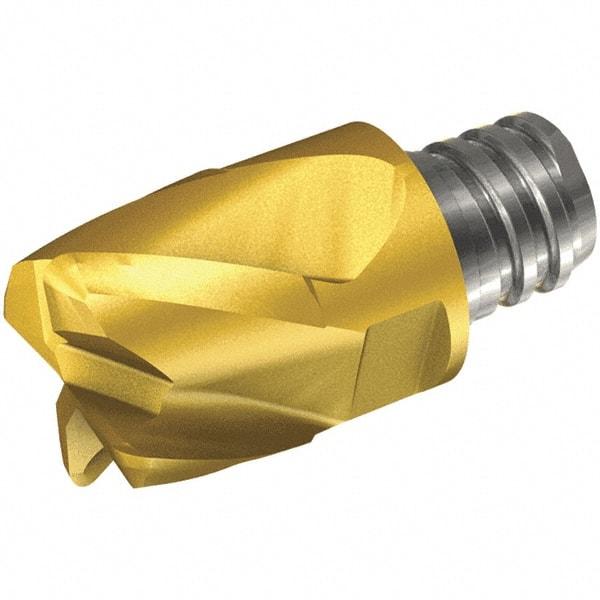

Iscar - MM EC Grade IC908 Carbide End Milling Tip Insert - TiAlN Finish, 4 Flutes, 10mm Cutting Diam, 7mm Depth of Cut, 13mm Extension, 0.0197" Cnr Rad, 30° Helix
Item #: 07630130
Brand: Iscar
Model #: 5621467
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM EC |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 10.00 |
| Cutting Diameter (Decimal Inch) | 0.3937 |
| Manufacturer's Grade | IC908 |
| Depth of Cut (mm) | 7.00 |
| Depth of Cut (Decimal Inch) | 0.2756 |
| Number of Flutes | 4 |
| Coating | TiAlN |
| Milling Tip Full Description | End Mill |
| Corner Radius (Decimal Inch) | 0.0197 |
| Coating Process | PVD |
| Extension From Holder (mm) | 13.00 |
| Extension From Holder (Decimal Inch) | 0.5118 |
| Thread Size | T06 |
| Helix Angle | 30 |
