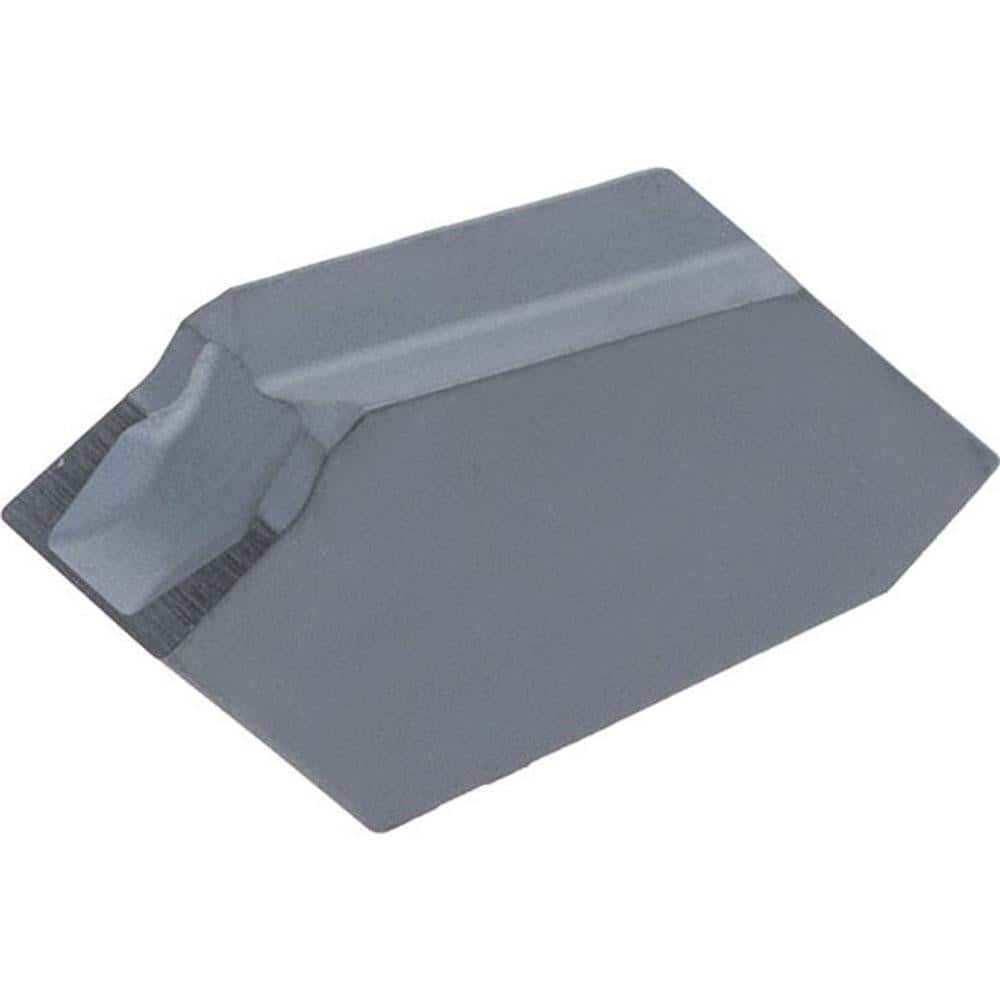

Grooving Insert: CTLK TH10, Solid Carbide Uncoated, Left Hand, 0.118″ Cutting Width, Series CTL
Item #: 06865059
Brand: Tungaloy
Model #: 6802665
Product Specifications
| Insert Style | CTL |
| Insert Size Code | 3 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TH10 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Insert Holding Method | Self Grip |
| Insert Hand | Left Hand |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Lead Angle | 8 |
| Rake | Positive |
| Multi-use Tool | No |
| Cutting Tool Application | Cut-Off |
| Series | CTL |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Superalloy; Cast Iron |
| Primary Workpiece Material Code | S; H; K; N |
| Chip Breaker | K |
| Coating/Finish | Uncoated |
