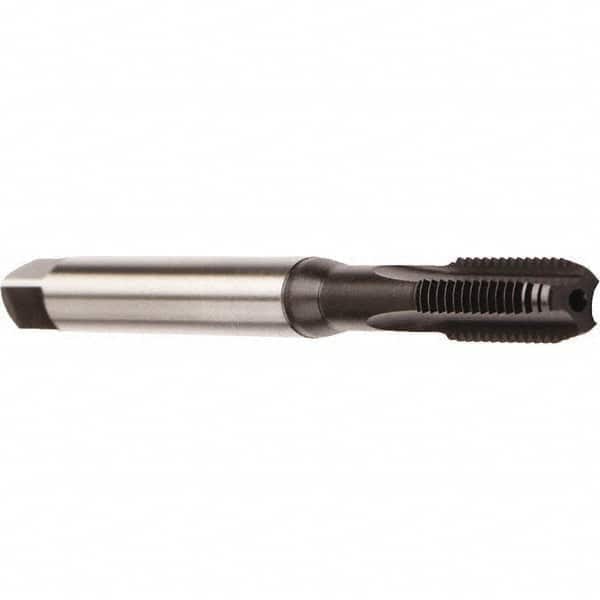

Emuge - M6x1.00 Metric Coarse 6HX 3 Flute Bright Finish Solid Carbide Straight Flute Machine Tap - Modified Bottoming, Right Hand Thread, 80mm OAL, 10mm Thread Length, Oversize, Through Coolant
Item #: 06833123
Brand: Emuge
Model #: B1950901.0060
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M6x1.00 |
| Class of Fit | 6HX |
| Number of Flutes | 3 |
| Chamfer | Modified Bottoming |
| Material | Solid Carbide |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | Through Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Decimal Inch) | 3.14960 |
| Overall Length (mm) | 80.00 |
| Oversize | No |
| Series/List | Rekord A |
| Thread Length (Decimal Inch) | 0.3937 |
| Thread Length (mm) | 10.00 |
| Neck Length (mm) | 30.00 |
| Neck Length (Decimal Inch) | 1.1811 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Shank Length (Decimal Inch) | 1.97 |
| Shank Length (mm) | 50 |
| Square Size (Decimal Inch) | 0.1929 |
| Square Size (mm) | 4.90 |
| Material Application | Aluminum Alloys; Cast Iron; Copper Alloys; Graphite; Hardened Steel; Steel |
