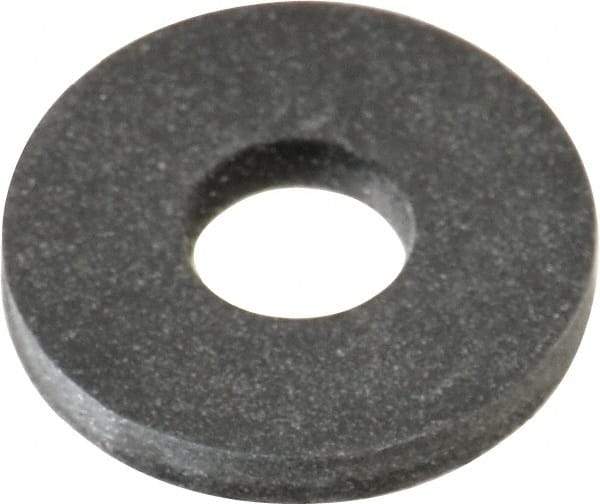

Made in USA - 1/4" Screw, Grade 60 Neoprene Standard Flat Washer - 0.23" ID x 5/8" OD, 0.108" Thick, Plain Finish
Item #: 06043731
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Flat washers are standard washers used for general-purpose fastening. They are placed under the head of a bolt or above a nut to distribute clamping force and prevent fasteners from pulling through materials.
Neoprene is a corrosion-resistant, insulating material that is strong, durable and ideal for sealing applications where moisture and leaks are concerns.
| Product Specifications | |
|---|---|
| Type | Standard |
| System of Measurement | Inch |
| Screw Size | 1/4 |
| Inside Diameter (Decimal Inch) | 0.2300 |
| Outside Diameter (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.1080 |
| Material Grade | Grade 60 |
| Material | Neoprene |
| Finish/Coating | Plain |
| Fastener Standard | MIL-R-6855 Class 2 Type A |
| Maximum Inside Diameter (Decimal Inch) | 0.2350 |
| Minimum Outside Diameter (Decimal Inch) | 0.6150 |
| Minimum Thickness (Decimal Inch) | 0.0780 |
| Inside Diameter Tolerance (Decimal Inch) | -0.010 to 0.010 |
| Outside Diameter Tolerance (Decimal Inch) | -0.010 to 0.010 |
