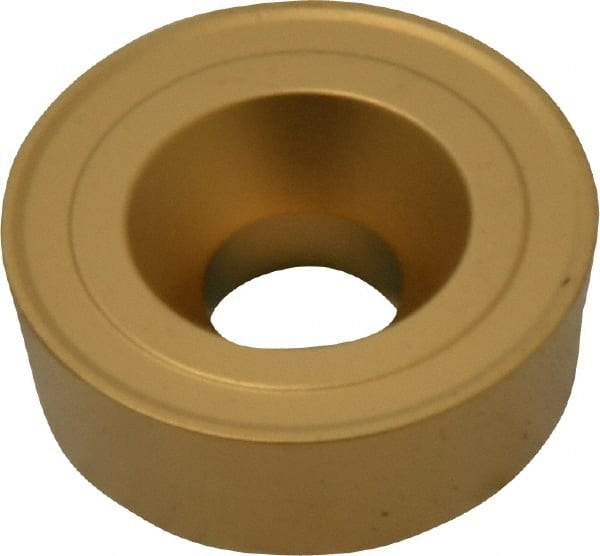

Kennametal - RCMH64 K Grade KC850 Carbide Turning Insert - TiC/TiCN/TiN Finish, Round, 3/4" Inscr Circle, 1/4" Thick
Item #: 05988415
Brand: Kennametal
Model #: 1158478
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMH |
| Insert Size | 64 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | KC850 |
| Coating | TiC/TiCN/TiN |
| Material Grade | C5/C6 |
| Chip Breaker | K |
| Hole Diameter (mm) | 6.40 |
| Hole Diameter (Decimal Inch) | 0.2520 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M; K |
| Insert Hand | Neutral |
| Series | Kentrol |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Screw |
| Shape | Round |
