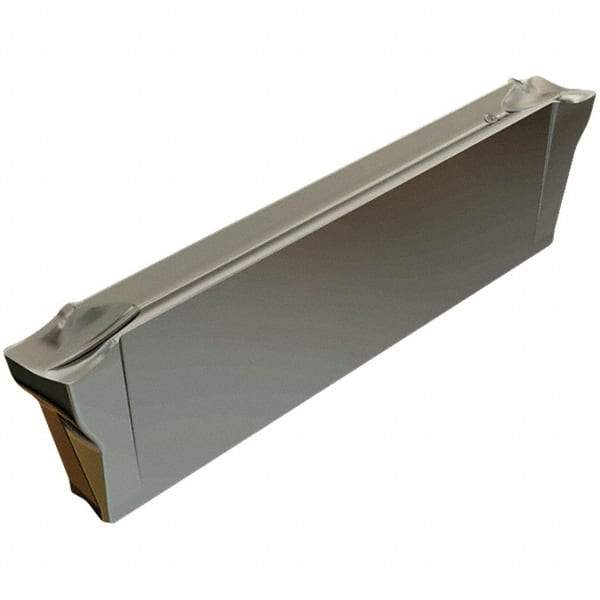

Iscar - DGL2200 IC1028 Grade, 0.0866" Cutting Width, Carbide Cutoff Insert - 6° Left Hand Lead Angle, 0.0008" Cnr Rad, TiAlN/TiN Coated, Double End
Item #: 05430921
Brand: Iscar
Model #: 6003075
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGL |
| Insert Size | 2200 |
| Lead Angle Direction | Left Hand |
| Lead Angle | 6 |
| Cutting Width (mm) | 2.20 |
| Cutting Width (Decimal Inch) | 0.0866 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC1028 |
| Coating | TiAlN/TiN |
| Series | Do-Grip |
| Relief Angle | 7 |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Coating Process | PVD |
| Overall Length (mm) | 20.40 |
| Overall Length (Decimal Inch) | 0.8031 |
| Corner Radius (Decimal Inch) | 0.0008 |
| Corner Radius (mm) | 0.02 |
| Overall Width (mm) | 2.20 |
| Overall Width (Decimal Inch) | 0.0866 |
