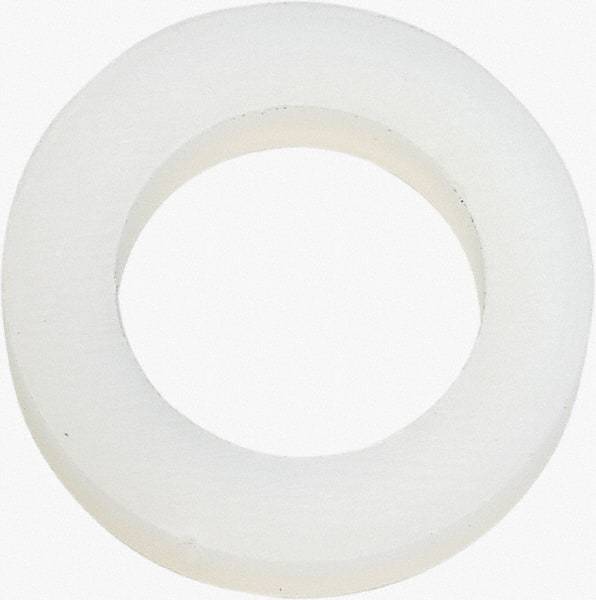

Made in USA - 5/16" Screw, Grade 6/6 Nylon Standard Flat Washer - 8.05mm ID x 1/2" OD, 2.36mm Thick
Item #: 05163431
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Flat washers are standard washers used for general-purpose fastening. They are placed under the head of a bolt or above a nut to distribute clamping force and prevent fasteners from pulling through materials.
Nylon is a lightweight, nonconductive material that is resistant to impact, wear and abrasion. It is ideal for electrical applications or where corrosion is a concern.
| Product Specifications | |
|---|---|
| Type | Standard |
| System of Measurement | Inch |
| Screw Size | 5/16 |
| Inside Diameter (Decimal Inch) | 0.3170 |
| Inside Diameter (mm) | 8.05 |
| Outside Diameter (Inch) | 1/2 |
| Outside Diameter (Decimal Inch) | 0.5000 |
| Outside Diameter (mm) | 12.70 |
| Thickness (Decimal Inch) | 0.0930 |
| Thickness (mm) | 2.36 |
| Material Grade | 6/6 |
| Material | Nylon |
| Maximum Outside Diameter (Decimal Inch) | 0.5000 |
| Inside Diameter Tolerance (Decimal Inch) | -0.005 to 0.005 |
| Outside Diameter Tolerance (Decimal Inch) | -0.015 to 0.015 |
