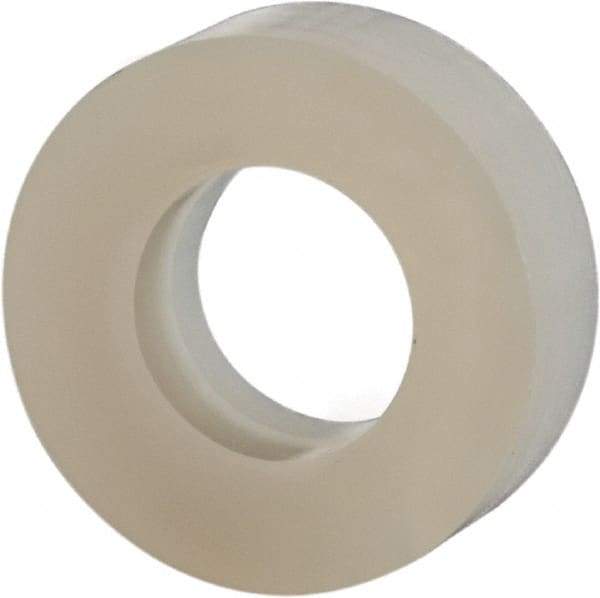

Made in USA - #10 Screw, Grade 6/6 Nylon Standard Flat Washer - 4.93mm ID x 3/8" OD, 3.18mm Thick
Item #: 05163399
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Flat washers are standard washers used for general-purpose fastening. They are placed under the head of a bolt or above a nut to distribute clamping force and prevent fasteners from pulling through materials.
Nylon is a lightweight, nonconductive material that is resistant to impact, wear and abrasion. It is ideal for electrical applications or where corrosion is a concern.
| Product Specifications | |
|---|---|
| Type | Standard |
| System of Measurement | Inch |
| Screw Size | #10 |
| Inside Diameter (Decimal Inch) | 0.1940 |
| Inside Diameter (mm) | 4.93 |
| Outside Diameter (Inch) | 3/8 |
| Outside Diameter (Decimal Inch) | 0.3750 |
| Outside Diameter (mm) | 9.53 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Material Grade | 6/6 |
| Material | Nylon |
| Maximum Outside Diameter (Decimal Inch) | 0.3750 |
| Inside Diameter Tolerance (Decimal Inch) | -0.005 to 0.005 |
| Outside Diameter Tolerance (Decimal Inch) | -0.015 to 0.015 |
