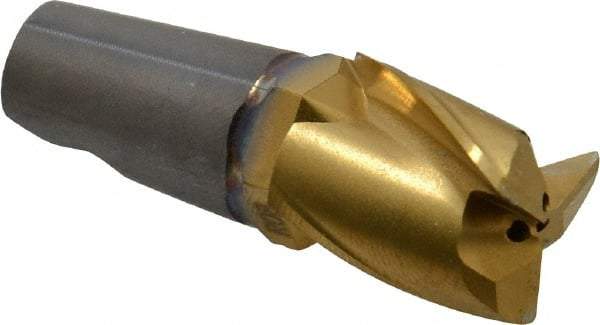

Seco - MM16 M06 Grade F40M Carbide End Milling Tip Insert - TiAlN/TiN Finish, 3 Flutes, 5/8" Cutting Diam, 0.758" Depth of Cut, 0.965" Extension, 0.031" Cnr Rad
Item #: 04959953
Brand: Seco
Model #: 23732
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Series | Minimaster |
| Milling Tip Style | MM16 |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Material Grade | C5 |
| Manufacturer's Grade | F40M |
| Depth of Cut (Decimal Inch) | 0.7580 |
| Number of Flutes | 3 |
| Coating | TiAlN/TiN |
| Milling Tip Full Description | Slot/Square Shoulder Milling |
| Corner Radius (Decimal Inch) | 0.0310 |
| Coating Process | PVD |
| Chipbreaker | M06 |
| Extension From Holder (Decimal Inch) | 0.9650 |
| Style | MM16-0.625-R031A30-M06 |
