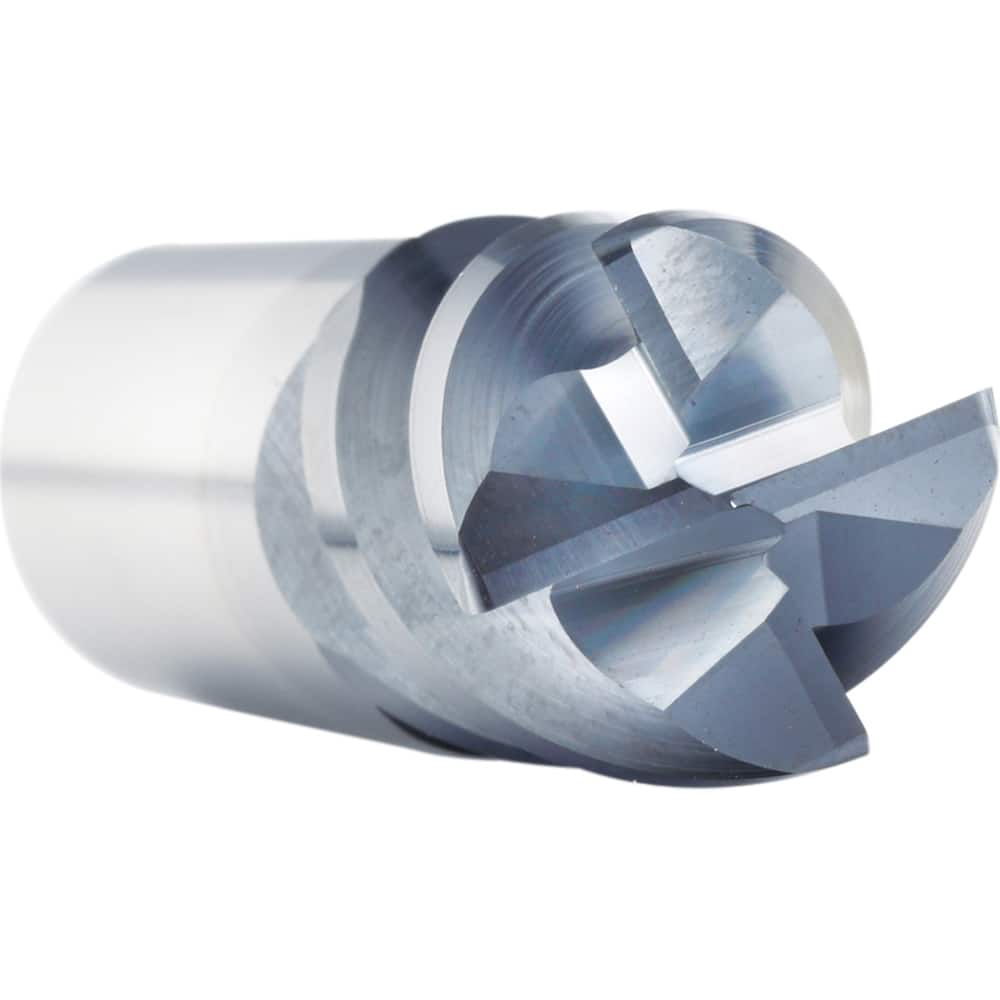

Supermill - Roughing End Mills Mill Diameter (Inch): 1 Mill Diameter (Decimal Inch): 1.0000
Item #: 18397042
Brand: Supermill
Model #: XP1.0C
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum chromium nitride (AlCrN) has a higher heat resistance than AlTiN. It is commonly used for machining aircraft and aerospace material, nickel alloy, stainless steel, titanium, cast iron and carbon steel.
Product Specifications
Roughing End Mills; Mill Diameter (Inch): 1 ; Mill Diameter (Decimal Inch): 1.0000 ; Number of Flutes: 4 ; Length of Cut (Inch): 1-1/2 ; Length of Cut (Decimal Inch): 1.5000 ; Shank Diameter (Inch): 1
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 1-1/2 |
| Length of Cut (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| End Type | Corner Chamfer |
| Material | Solid Carbide |
| Finish/Coating | AlCrN |
| Overall Length (Inch) | 4 |
| Centercutting | Yes |
| Helix Angle | 45.00 |
| Chamfer Width (Decimal Inch) | 0.0200 |
| Chamfer Angle | 45.000 |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Overall Length (Decimal Inch) | 4.00000 |
| Series/List | XP |
| Chipbreaker | Yes |
