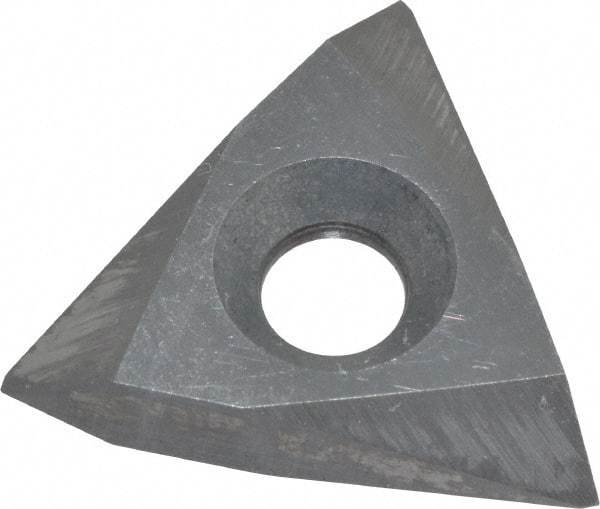

Interstate - TNMC43 60° V Grade C520 Internal/External On Edge Threading Insert - Uncoated, 6-20" External TPI, 6-12" Internal TPI, 1/2" Inscribed Circle, Neutral Cut
Item #: 04107603
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMC |
| Insert Size | 43 |
| Thread Type | Internal/External |
| Cutting Direction | Neutral |
| Thread Standard | 60 V |
| Manufacturer's Grade | C520 |
| Internal Threads Per Inch | 6.0-12.0 |
| External Threads Per Inch | 6-20 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.76 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Rake | Neutral |
| Material | Carbide |
| Coating | Uncoated |
| Hole Diameter (Decimal Inch) | 0.2040 |
| Material Grade | C2 |
| Rake Angle | 0 |
| Hole Shape | Countersunk |
