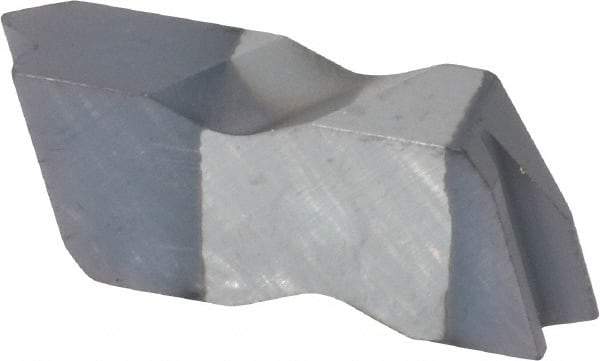

Kennametal - NDC3 Grade KC5025, Internal/External API Round Threading Insert - 8 TPI Int Pitch, Left Hand Insert, TiAlN Finish, Carbide
Item #: 02617652
Brand: Kennametal
Model #: 1799563
Exact Tooling IR#: 04
Features and Benefits
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NDC |
| Insert Size | 3 |
| Thread Type | Internal/External |
| Insert Hand | Left Hand |
| Thread Standard | API Round |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KC5025 |
| Internal Pitch/TPI | 8 TPI |
| Coating | TiAlN |
| Material | Carbide |
| Coating Process | PVD |
| Corner Radius (mm) | 0.43 |
| Corner Radius (Decimal Inch) | 0.0169 |
| Thickness (mm) | 4.95 |
| Thickness (Decimal Inch) | 0.1949 |
| Series | Top Notch |
| Included Angle of Threading Tip | 60 |
| Rake | Neutral |
| Tip to Top of Insert (mm) | 3.18 |
| Tip to Top of Insert (Decimal Inch) | 0.1252 |
| Manufacturers Catalog Number | NDC38RDL75 |
