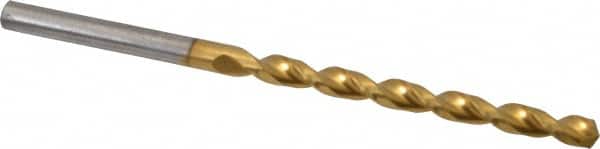

Cleveland - 5/32" 135° Cobalt Jobber Drill - TiN Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 3-1/8" OAL, Split Point
Item #: 02145837
Brand: Cleveland
Model #: C16673
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 5/32 |
| Drill Bit Size (Decimal Inch) | 0.1562 |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 2 |
| Flute Length (mm) | 50.80 |
| Flute Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 3-1/8 |
| Point Type | Split Point |
| Shank Diameter (Inch) | 5/32 |
| Specification Designation | ANSI |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.0007 to 0.0000 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | Heavy-Duty |
| Material Grade | M42 |
| Series/List | 2075T |
