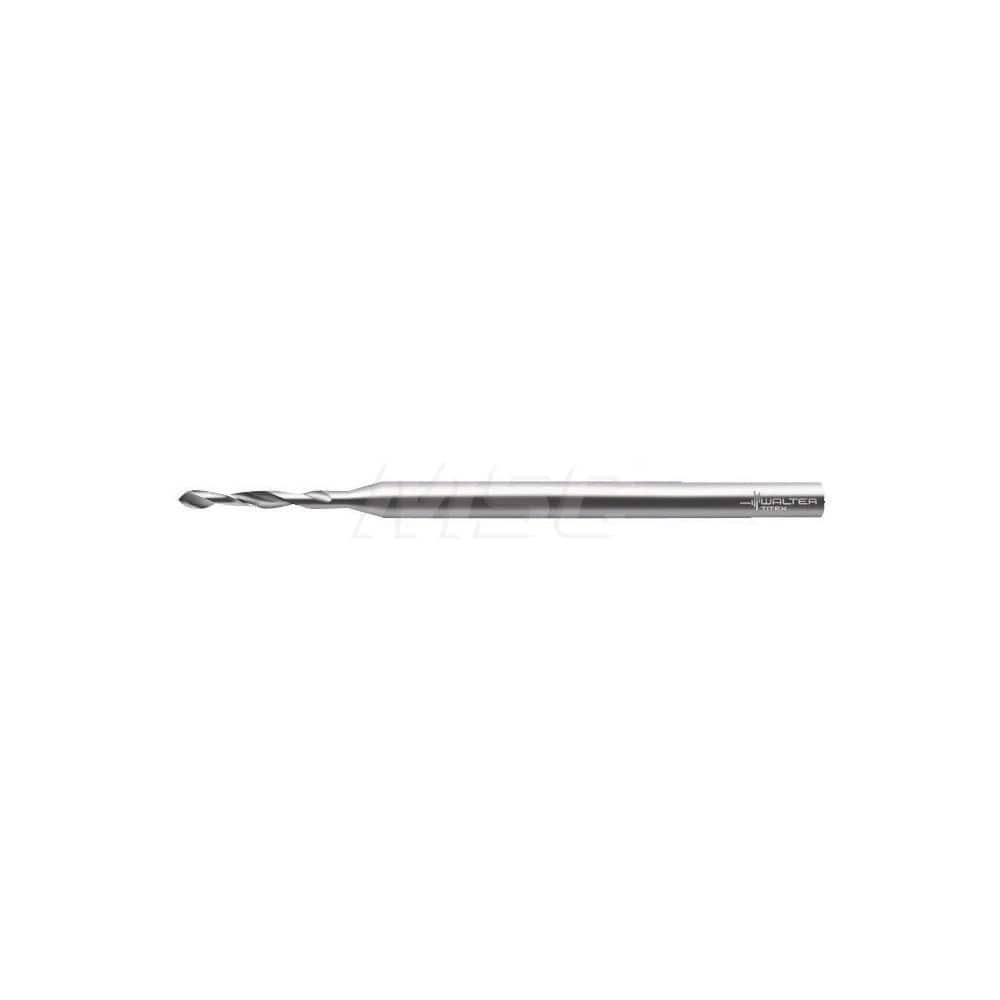

Micro Drill Bit: 0.0571″ Dia, 118 °, Cobalt Bright/Uncoated, RH Cut, Spiral Flute, Straight-Cylindrical Shank, Series A3143
Item #: 01481456
Brand: Walter-Titex
Model #: 5062943
Product Specifications
| Drill Bit Size (mm) | 1.45 |
| Drill Bit Size (Decimal Inch) | 0.0571 |
| Tool Material | Cobalt |
| Flute Length (mm) | 9.50 |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Drill Point Angle | 118 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (Decimal Inch) | 0.3000 |
| Series | A3143 |
| Overall Length (mm) | 25.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | Standard |
| Tool Application | Through Hole Drilling; Blind Hole; Stack Drilling |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance | +0.000 to -0.004 mm |
| Primary Workpiece Material | Titanium Alloy |
| Primary Workpiece Material Code | P; S; K; N |
| Secondary Workpiece Material | Glass; Graphite |
| Secondary Workpiece Material Code | M; O |
| Standards | DIN 1899 |
| Shank Diameter (mm) | 1.50 |
| Flute By Diameter Ratio | 5xD |
| Drill Bit Grade | General Purpose |
| Spiral Type | Regular |
| Specification Number | DIN 1899 |
