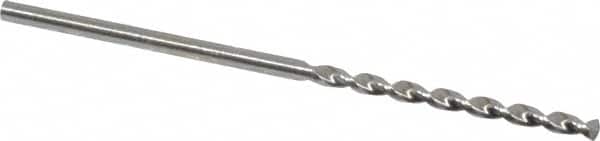

Walter-Titex - #53 130° High Speed Steel Jobber Drill - Bright Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 1-11/16" OAL, Standard Point
Item #: 01463538
Brand: Walter-Titex
Model #: 5059397
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Wire) | #53 |
| Drill Bit Size (Decimal Inch) | 0.0595 |
| Drill Point Angle | 130 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 25/32 |
| Overall Length (Inch) | 1-11/16 |
| Point Type | Standard |
| Shank Diameter (Decimal Inch) | 0.0595 |
| Specification Designation | BS; DIN |
| Web Configuration | Tapered |
| Web Thinning | Web-Thinned |
| Specification Number | BS 328; DIN 338 |
| Drill Bit Grade | High Performance |
| Series/List | A1222 |
