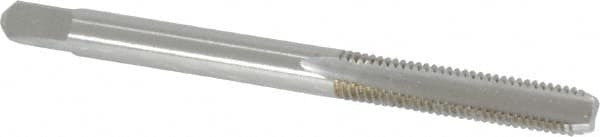

Kennametal - #10-32 UNF 2B 2 Flute Bright Finish High Speed Steel Straight Flute Standard Hand Tap - Bottoming, Right Hand Thread, 2.38" OAL, 7/8" Thread Length, H3 Limit, Oversize
Item #: 01255629
Brand: Kennametal
Model #: 1542084
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | #10-32 |
| Class of Fit | 2B |
| Thread Limit | H3 |
| Number of Flutes | 2 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNF |
| Overall Length (Decimal Inch) | 2.38000 |
| Oversize | No |
| Series/List | 5305/5303 |
| Thread Length (Decimal Inch) | 0.8750 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Material Application | Cast Iron; Non-Ferrous Metals |
