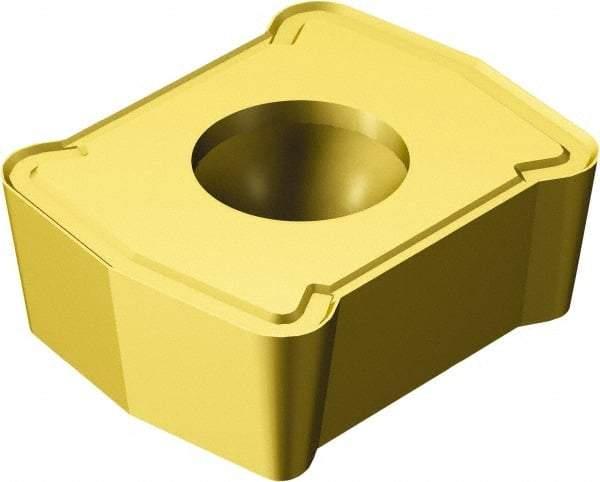

Sandvik Coromant - LCMX4 53 Grade 1020 Carbide Indexable Drill Insert - TiN Finish, Rectangle, 1/4" Inscribed Circle
Item #: 00881391
Brand: Sandvik Coromant
Model #: 5733671
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness-resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Insert Style | LCMX |
| Insert Size | 4 |
| Material | Carbide |
| Manufacturer's Grade | 1020 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (mm) | 3.18 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Rectangle |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Relief Angle | 7 |
| Included Angle | 7 |
| Coating | TiN |
| Coating Process | PVD |
| Chipbreaker | 53 |
